Technical Specification :
The Life - Raft Cell is switch operated Lithium type
battery works at 3.0 volts
and discharged for 12 hours. It is having approximate
dimension 38.0 mm dia. X 98.0 mm height.
Construction :

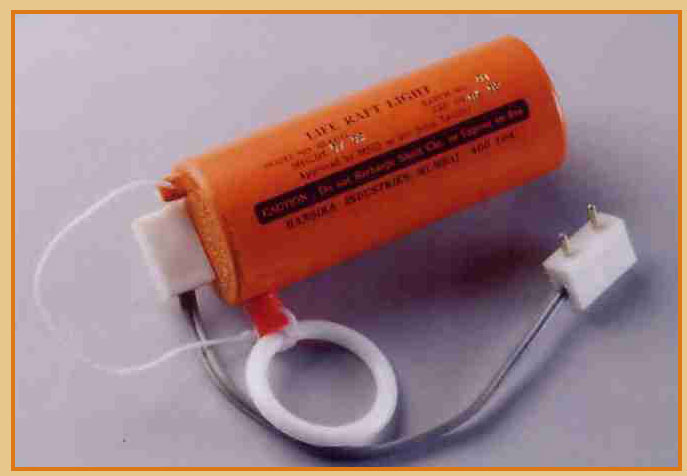

Life - Raft Cell is consists of ABS moulded container
& lithium battery with manual operated switch. The Light
unit is attached with battery. On pulling out the switch
knob, the light glows. When switch rod is inserted to
cell, light goes off.
Application :
Used in life - raft as inner canopy Light & is made as per
international requirement of SOLAS 74 / 96 with latest
amendment and IMO resolution MSC81(70).
Operation :
To activate the cell, remove the switch knob from cell and
light will glow.
Approval :
The Life Buoy light is approved by MMD Mumbai, Govt. of
India.
|
